Pipe Marking Sizing Guide

Updated on: February 3, 2026 3 MINUTE WATCH Published on: Aug 12, 2024

Feeling overwhelmed by the maze of pipes in your facility? You’re not alone! Pipe marking is crucial for safety and efficiency, and in this DuraLabel Pipe Marker Sizing Guide, we'll walk you through everything you need to know.

What You'll Learn:

How to measure the diameter of your pipes before buying and applying pipe markers.
Choosing the correct label size and font for five different pipe sizes, from ¾ inch to over 10 inches.
Applying labels correctly for maximum durability and visibility.

Important Notes:

When you are buying pre-made pipe markers on the DuraLabel website, you can choose arrows to indicate flow direction. Buying pre-made the arrows will arrive separately at no additional charge.
When using a DuraLabel print systems, you will be able to print off custom pipe marking labels from 1 inch up to 4 inches wide with or without arrows.

Additional Resources:

Free Pipe Marking Instant Action Guide

DuraLabel Pipe Marking Supplies

What's Pipe Marking Sizing?

Video Transcription

Feeling overwhelmed by the maze of pipes in your facility? You're not alone. You got DuraLabel.

Pipe marking is crucial for safety and efficiency.

Learn how to measure your pipes and choose a compliant label in this pipe marker sizing walk through from DuraLabel. Let's get started.

First, grab your measuring tape as we are going to measure the diameter of your pipes.

Accurate measurements are crucial for selecting the correct label size. We'll cover five different pipe sizes from three quarter inch all the way to over ten inches. Be sure to follow DuraLabel's pipe marking sizing table along the way. Our free pipe marking instant action guide is available for download in the link above or in the description below.

Our first pipe, typically from three quarter inch up to one and a quarter inch in diameter, you will wanna use a label size that's one inch wide by eight inches long. Make sure your font size is a half inch which is sufficient for clear visibility.

Apply the adhesive label evenly, making sure it adheres securely to the surface.

Next, pipes that are one and a half inch to two inches. You want the same size label, but increase the minimum letter height to three quarter inches.

For medium pipes ranging from two and a half inches to six inches in diameter, choose a label size that is at least two inches wide by twelve inches long with a font size of one and a quarter inches.

This size ensures your markings are visible from a distance.

Position the label carefully and press it down firmly to ensure a strong bond. For large pipes greater than six inches and up to ten inches in diameter, opt for a label size of three inches wide by twenty four inches long. Use a font size of at least two and a half inches to ensure readability even from afar.

Apply the label making sure it's centered and securely attached.

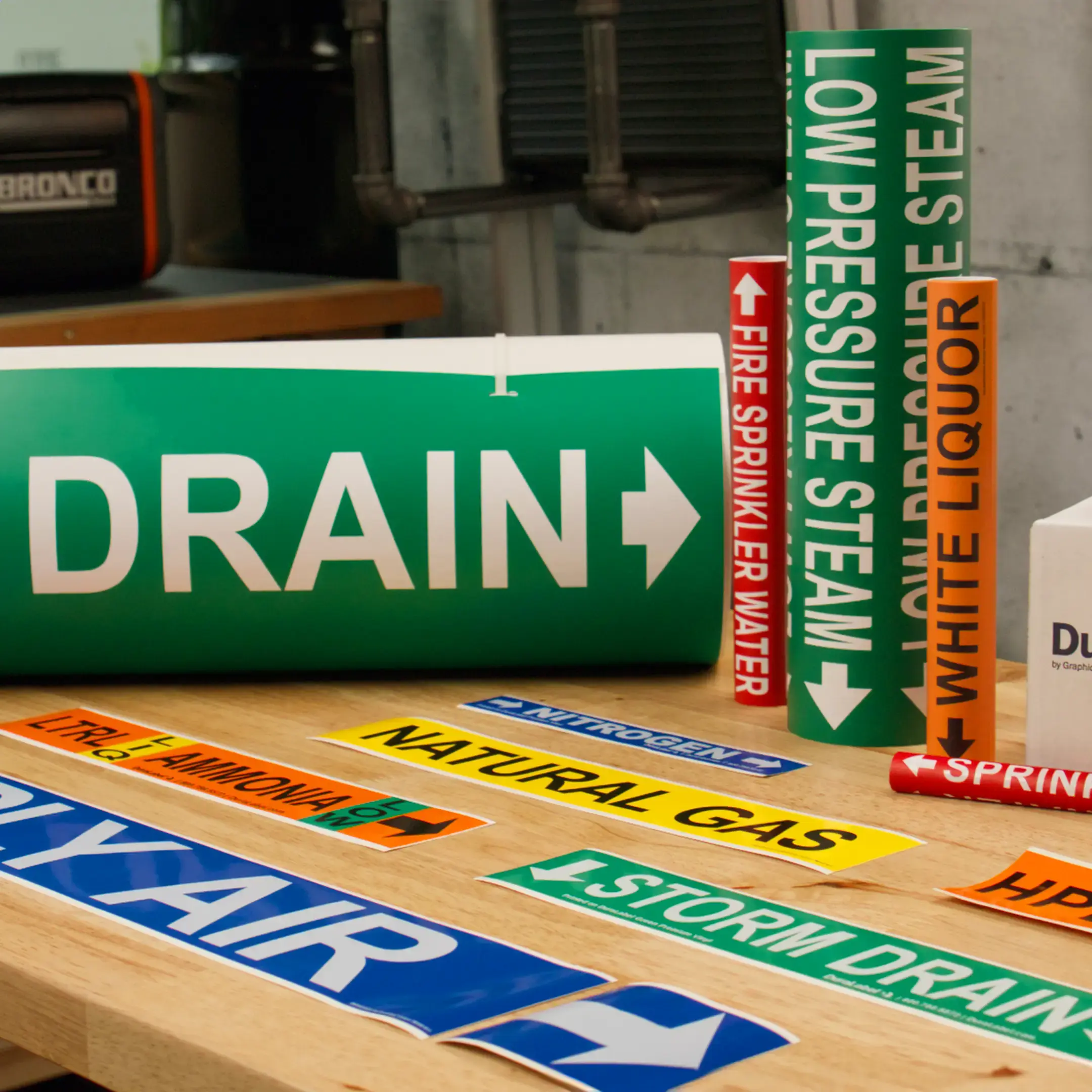

Any pipes over ten inches you will wanna use a four inch wide by thirty two inches long label with a minimum letter height of three and a half inches. DuraLabel offers a range of pipe marking solutions that cater to all sizes and needs. You can print custom pipe marking labels from one inch up to four inches wide with any DuraLabel printer. You can also order a wide variety of pre made pipe markers with separate arrows to indicate flow direction directly from our website.

We have options for versatile and efficient adhesive, coiled or zip tie on pipe markers that withstand the toughest work environments, allowing for flexibility and maintenance. With DuraLabel, you can count on premium products that are tough, timely, and reliable.

For more information and to order your pipe marking labels, visit dura label dot com. Thanks for watching, and don't forget to subscribe for more helpful tips.
